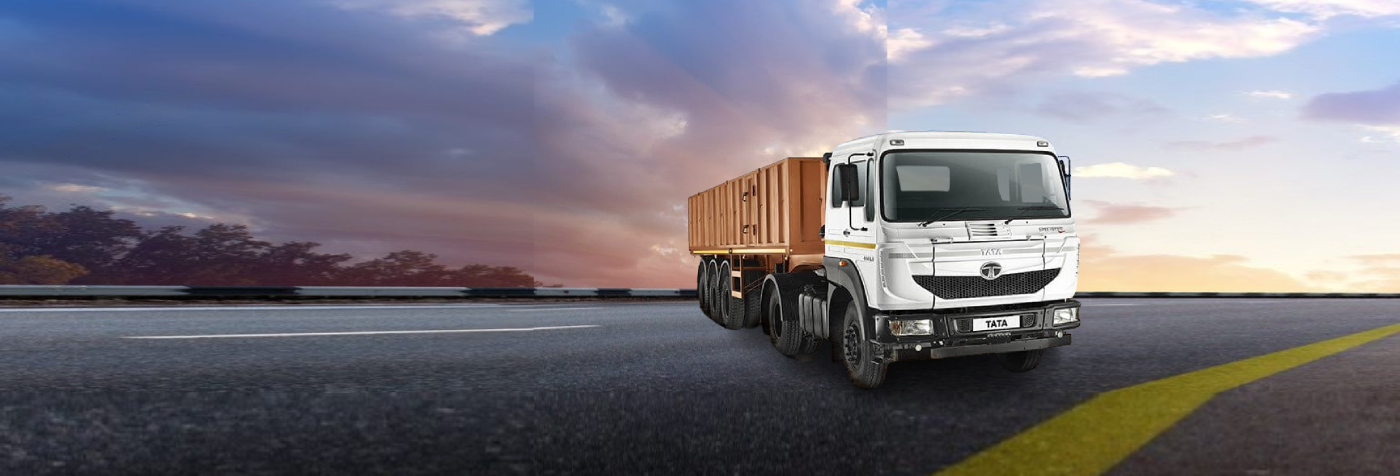

Side Wall Trailer

Elevate your transportation experience with our expertly crafted side wall trailer

Adithya Automotive Application Limited presents Side Wall Trailers, meticulously crafted for maximum strength and durability. Reinforced pillars, a mid corrugation for additional load-bearing strength, and the use of high-grade steel ensure a life-long performance. The heavy-duty 180-degree foldable taildoor and jointless NPB chassis make these trailers ideal for varied applications, ranging from 28' to 40' in length and customizable heights.

Product Features

Max Strength Design
Widened and reinforced pillars provide unparalleled strength, ensuring reliable performance under heavy loads.

Seamless Top Rail
A single-length top rail, free from joints, enhances structural integrity, contributing to the trailer’s robust design.

Sturdy Taildoor Frame
The taildoor is fortified with a strengthened frame, guaranteeing durability and security for your transported goods.

Heavy-Duty Chassis
Crafted from jointless NPB, the heavy-duty chassis ensures stability and endurance, making it ideal for transporting coal, aggregates, iron ore, fly ash, sand, and boulders.

Single-Length Sidewalls
The trailer features single-length sidewalls for uniform strength and enhanced load-bearing capacity.

Elongated Brackets for Longevity
Specially designed elongated brackets contribute to a trouble-free performance throughout the trailer’s lifespan, reducing maintenance hassles.

Variant Details

Technical Specification

Our Side Wall Trailers boast body dimensions of 7.620m (32′) length, 2.390m (8′-5″) width, and 1.775m (4′) height. The wheelbase measures 6423mm, providing stability and maneuverability. Designed for versatility, the range offers customization options, allowing lengths from 28′ to 40′ and heights tailored to customer requirements and applications. Ideal for a wide array of cargo, these trailers redefine efficiency and adaptability in the transportation industry.

Side Wall Trailer (Corrugated Model)

Description :-

54T GVW with 6wheel Prime Movers
55T GVW with 10wheeler Prime Mover

Technical Specification:-

APPLICATION	Cement & Agricultural products
BODY DIMENSIONS	9.8m L x 2.59m W x 1.375m H
VOLUME	32 FT x 4.5 FT Side Wall Trailer
CHASSIS	TATA SIGNA 5530.S (4X2)

Application:-

Cement & Agricultural products

Technical Specification

30 ft X 4.5 ft Side Wall Trailer (ISMC Channel Design)

Description :-

54T GVW with 6wheel Prime Movers

55T GVW with 10wheeler Prime Mover

APPLICATION	Cement & Agricultural products
BODY DIMENSIONS	9.2m L x 2.59m W x 1.370m H
VOLUME	30 ft X 4.5 ft Side Wall Trailer (ISMC Channel Design)
CHASSIS TYPE	TATA SIGNA 5530.S (4×2)

Application:-

Cement & Agricultural products

32 ft X 5 ft Side Wall Trailer (SHELMA Design)

Description :-

54T GVW with 6wheel Prime Movers

55T GVW with 10wheeler Prime Mover

APPLICATION	Cement & Agricultural products
BODY DIMENSIONS	9.8m L x 2.59m W x 1.530m H
VOLUME	32 ft X 5 ft Side Wall Trailer (SHELMA Design)
CHASSIS TYPE	TATA SIGNA 5530.S (4×2)
