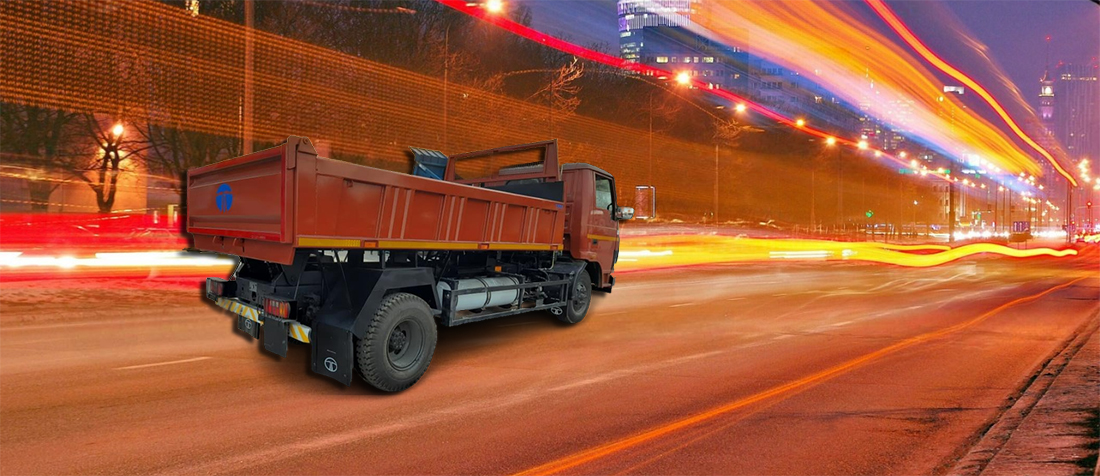

Garbage Tipper

Elevate your transportation experience with our expertly crafted Garbage Tipper

Introducing New 1009g LPT BS6 with Old Trusted & Proven 3.8SGI NA engine with Higher torque available at lower RPM for Best In class mileage and TCO. Comes in 4 different variants in combination of 2 CNG Capacities (300L & 430L water capacity) and 2 load body options, 1009g LPT comes with 217mm Ground Clearance and 23% gradeability. 1009g LPT comes with lot of first in its segment features like Reverse parking Buzzer, GSA, Music system with Fast USB charger, fast and slow filling nozzles etc It has got the world class safety components like Auto Shut off valve, High pressure filter, Refuelling interlock device, Electronic Viscous fan, Swagelok fittings for better safety and higher aggregate life.

Product Features

Engine

The DNA of BS4 Engine is carried to the BS6 Engine so that the same reliability and Mileage Superiority is achieved
In 3.8L SGI NA BS6 Engine-
Max Power is 85 kW @ 2500 r/min
Max Torque is 285 Nm @ 1200 -1600 r/min and Low end Torque is 350 Nm. In BS6 this engine will deliver 5.5% More Max torque with flatter torque over wider rpm range. Low end torque is also improved by 8%. Due to these changes in BS6 this engine delivers better mileage, better response at start and reduces driving fatigue by less gear shifting.

Cabin Features

SAFETY ENHANCED with more solid built quality ALL STEEL Cabin
Less Gear shifting and clutching efforts for less driving fatigue

Comfortable Seating

D+1 Seating Configuration
Seat Adjustment in XZ direction
Reduces driver Fatigue, increase overall driving comfort
Melba Fabric for Seats for better comfort both in summer and winter

Steering

Tilt and Telescopic Steering for easy manoeuvrability in narrow lanes and best driving position
Four spoke soft touch steering wheel for superior driving comfort

New Multi-Function Ergonomic Instrument Cluster

New Instrument cluster with features like Gear shift Advisor, Driver Message Screen, Average fuel Economy and Tell Tale Symbols
Display trip indication (Trip A& B), Fuel Gauge, Oil Pressure Gauge, Malfunction indication lamp, Screen navigation etc.

Tyres: 8.25 x 16 – 16PR

Robust sidewall provides sufficient lateral holding power
Wider tread surface
Enhanced high speed stability
Less rolling resistance- Better fuel economyy
Better Tyre mileage

Variant Details

Technical Specification

Adithya Automotive Applications Limited’ Grabage Tipper 1009g LPT comes with lot of first in its segment features like Reverse parking Buzzer, GSA, Music system with Fast USB charger, fast and slow filling nozzles etc It has got the world class safety components like Auto Shut off valve, High pressure filter, Refuelling interlock device, Electronic Viscous fan, Swagelok fittings for better safety and higher aggregate life.

4 Cum Under Body Garbage Tipper

Description :-

4 Cum Under Body Garbage Tipper

Technical Specification:-

APPLICATION	Municipal Garbage
BODY DIMENSIONS	3.825m L x 2.035m W x .535m H
VOLUME	4 Cum Under Body Garbage Tipper
CHASSIS TYPE	TATA LPT 1009 CNG

Application:-

Municipal Garbage

6 Cum Under Body Garbage Tipper

Description :-

8.5 Cum Under Body Garbage Tipper

Technical Specification:-

APPLICATION	Municipal Garbage
BODY DIMENSIONS	3.825m L x 2.035m W x .800m H
VOLUME	6 Cum Box Tipper
CHASSIS TYPE	TATA LPT 1109/38 WB, CNG CNG

Application:-

Municipal Garbage

8.5 Cum Under Body Garbage Tipper

Description :-

8.5 Cum Under Body Garbage Tipper

Technical Specification:-

APPLICATION	Municipal Garbage
BODY DIMENSIONS	4.285m L x 2.280m W x 9.00m H
VOLUME	8.5 Cum Box Tipper
CHASSIS TYPE	TATA LPT 1412/42 WB, CNG CNG
